Material: PA, PE, PP
Thickness: 50, 55, 65, 75, 90 microns
Roll width: 12m Max, customized
Shanghai Mac Corporation is one of the leading and reliable exporters of Vacuum Bag Film in China. We provide the high quality matched products and excellent services for various industries.

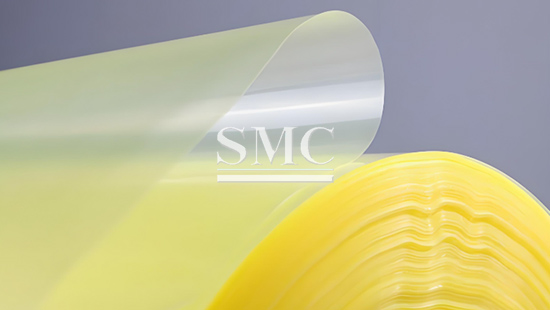

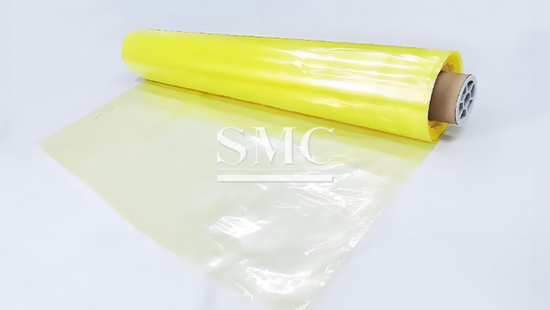

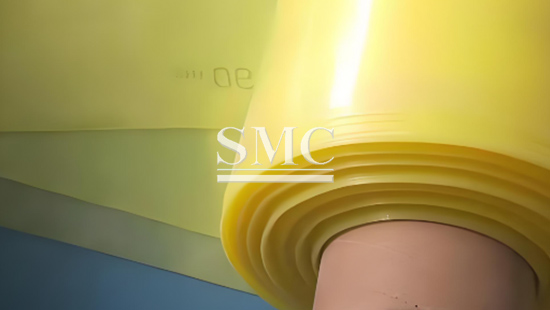

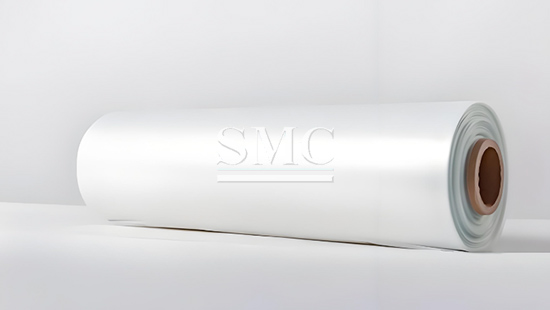

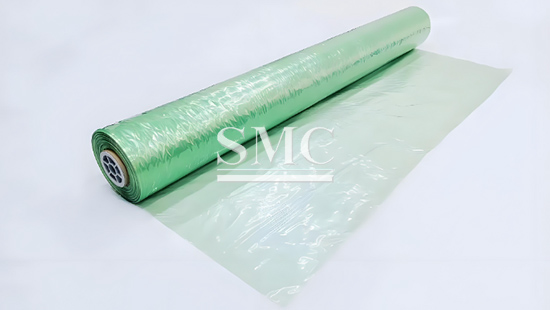

Vacuum bag film is a critical consumable widely used in composite manufacturing and industrial packaging. Typically made from flexible materials like nylon or polyethylene, it boasts excellent airtightness, high tensile strength, and tailored temperature resistance for diverse scenarios. In composite production, it seals composite laminates; paired with a vacuum system, it extracts trapped air, ensuring uniform pressure to eliminate voids and boost structural integrity of aerospace, automotive, or wind turbine components. For packaging, it preserves food freshness and shields electronic parts from moisture/oxidation. Different grades cater to low-to-high temperature curing, making it indispensable for quality control across industries.
If you want to know more about Vacuum Bag Film, please feel free to contact us, we will reply you within 24 hours.
Technical Detail of Vaccum Bag Film
|
Product model |
Color |
Material |
Tensile strength MD/TD |
Elongation at break MD/TD |
Maximum roll width |
Thickness |
Maximum temperature |
|
LVBF600Y |
Yellow |
PA/PE |
45/45MPa |
380% |
12m |
50/65/75µm |
150℃ |
|
LVBF150Y/R-3 |
Yellow/Red |
PA/PE/PP |
40/40MPa |
400% |
10.5m |
65/90µm |
160℃ |
|
LVBF350V |
Violet |
PA/PE/PP |
40/35MPa |
350% |
8m |
75µm |
160℃ |
|
LVBF165B |
Blue |
PA/PE |
50/50MPa |
300% |
8m |
55/75µm |
165℃ |
|
LVBF250V |
Violet/Orange |
PA/PE/PP |
45/45MPa |
400% |
8m |
75µm |
170℃ |
Shanghai Mac Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Mac Standard
2) Customization
